Brand

 Model

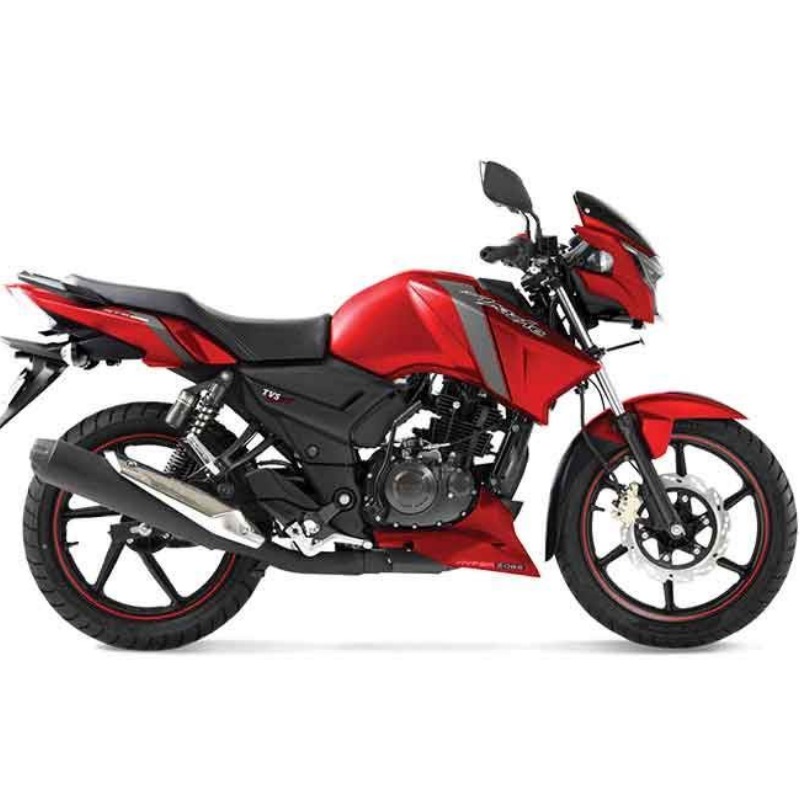

 Apache RTR 160CC.

 ENGINE

 Type

 4 stroke, air-cooled, single-cylinder OHC.

 Cylinder Bore

 Stroke

 52.5 mm.

 Piston displacement

 159.7 cc.

 Air Filter

 Double Polyurethane foam filter element.

 Oil Filter

 Wire mesh and micronic paper filter.

 Lubrication System

 Forced wet sump.

 Maximum Power in kW

 11.19(15.2 bhp)@8500 rpm.

 Maximum Torque in NM

 13.1 @ 6000 rpm.

 Maximum Speed

 118 km/hr.

 Starting System

 Kick starter / Electric starter.

 TRANSMISSION

 Gear Shift Pattern

 1 down and 4 up.

 Primary Transmission

 Helical gears.

 Secondary Transmission

 Chain and sprockets.

 DIMENSIONS

 Overall Length

 2085 mm.

 Overall Width

 Overall Height

 Seat Height

 Wheel Base

 GEAR RATIOS

 I Gear

 2.917:1.

 II Gear

 1.857:1.

 III Gear

 1.333:1.

 IV Gear

 1.050:1

 V Gear

 0.880:1.

 Primary Reduction

 3.095:1.

 Final Reduction

 3.385:1.

 CHASSIS

 Frame

 Double cradle Synchro STIFF.

 Front Suspension

 Telescopic oil damped.

 Rear Suspension

 Monotype inverted gas-filled 5 step adjustable shocks with rectangular swing arm.

 TYRE

 Front Tyre Size

 90/90× 17 (Tubeless).

 Rear Tyre Size

 110/80× 17 (Tubeless).

 Front Tyre Pressure

 1.75 kg/cm² (24 PSI).

 Rear Tyre Pressure

 2.25 kg/cm² (32 PSI).

 Breaks

 Front

 Hand operated, 270 mm petal disc.

 Rear

 Foot operated 130 mm dia. (drum brake  model).

 ELECTRICAL

 Type

 AC generator.

 Ignition System

 IDI – Dual mode digital ignition.

 Battery Type

 12V, 9.0 Ah.

 Head Lamp

 Halogen HS 12V, 35/35W×1.

 Position Lamp

 LED 12V, 3W.

 Horn

 12V DC × 2.

 Fuse

 12V 10A × 1.

 Color

 Red, Blue.

 Warranty

 12,000 Kilo - Engine Warranty.

 Delivery Area

 Dhaka, Khulna, Jessore, Barisal,  Rangpur, Mymensingh, Sylhet,  Comilla.

 Delivery Area: Dhaka, Khulna, Jessore, Barisal, Rangpur, Mymensingh, Sylhet, Comilla.  | Delivery Free these Area |

• Outside these Area 2000 - 3000 tk.
